Product Introduction
UV-int253 UVC Energy Meter is a high-quality ultraviolet energy meter specifically designed for measuring UV energy in the UVC range (230-280nm). This specialized instrument is ideal for use with ultraviolet sterilization lamps in various applications including shoe factories, food industry, medical facilities, and mask sterilization processes.

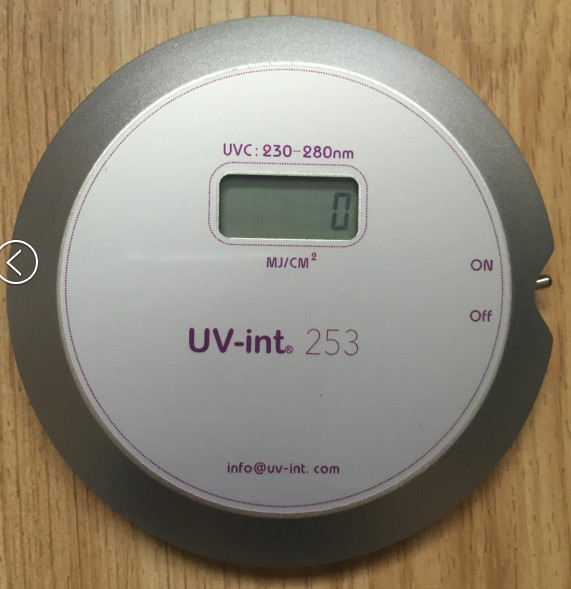

The main sensor of the meter is located on the back of the device, and measurement results can be directly read on the display screen on the front of the meter during testing. This makes it easy to use and provides instant feedback on UV energy levels.
With its compact design and high temperature resistance, the UV-int253 is a reliable tool for ensuring effective sterilization processes across different industries.
Technical Specifications
| Spectral Measurement Range | UVC 230-280nm |
|---|---|
| Display Value | 0-999999mj/cm² |
| Note | Display value / 10 = actual value |
| Dimensions | Diameter: 120mm Height: 12mm |
| Maximum Temperature Resistance | 110°C |
| Control | ON / OFF Switch |
| Weight | Approximately 150g |
Product Features
UVC Specialization
Specifically designed for 230-280nm UVC measurement, ideal for sterilization applications
High Temperature Resistance
Can withstand up to 110°C, suitable for use in high-temperature sterilization environments
Compact Design
Small and lightweight (150g), easy to carry and use in various settings
Direct Display
Instantly shows measurement results on the front display for easy reading
Wide Application
Suitable for shoe factories, food industry, medical facilities, and mask sterilization
Easy Operation
Simple ON/OFF switch operation, user-friendly for all skill levels
Application Areas
Shoe Factory Sterilization
Ensuring proper UV sterilization in shoe manufacturing processes
Food Industry
Maintaining hygiene standards through effective UV sterilization
Medical Facilities
Monitoring UV sterilization in healthcare settings
Mask Sterilization
Ensuring proper sterilization of masks and personal protective equipment
UV Lamp Testing
Verifying the effectiveness of UV sterilization lamps
Industrial Sterilization
Monitoring UV sterilization in various industrial processes
Installation & Operation
- When the ON switch is turned on, the LCD (display) shows zero.
- Place the UV energy meter near the source of the UV lamp, and try to align the back of the meter with the lamp source (because the energy sensor of the energy meter is on the back), and extend the irradiation time appropriately.
- Until there is a measurement display on the display of the energy meter, for example 800 mJ / cm².
- Turn off the energy meter switch (OFF), or set the value of the display to zero.
Important Notes
Important Warnings
- Do not look directly or indirectly at the UV lamp through refraction/ reflection to ensure that no part of the body is directly exposed to the UV lamp.
- This UV energy meter can withstand higher temperatures, but should not be on the conveyor belt for more than 10 seconds, with a temperature resistance of 110 ℃.
- Handle the device with care to avoid damage to the sensor or display.
- Store the device in a cool, dry place when not in use.
